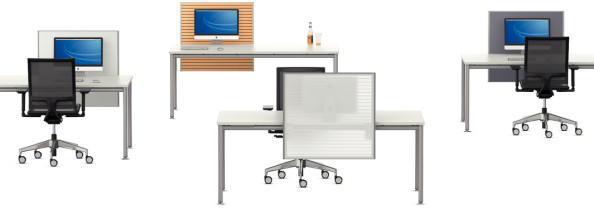

Series 2000
Typ S. Screen for NetWork.
System consists of a hang-in element (suspended).
Construction is based on a four-sided frame of aluminium profile and a filling element. The sides have a vertical optical and functional groove as well as an integrated but removable U-shaped plastic strip for linking two privacy screens without using tools.
Filling element 1. Melamine-resin laminated chipboard. 2. From a lightweight top with fabric covering. 3. A melamine-resin laminated sound-absorbing panel with slits. 4. A translucent double-ribbed board.
Supporting element is the top frame of NetWork tables.

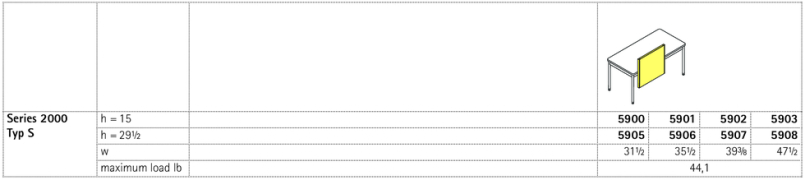

Please note: When hanging accessories into the functional groove, the maximum loading must be observed (see table). Series 2000 elements can only be combined with rectangular table tops.
The following material groups are available to choose from: Frame made of aluminium: M(anodis); Writing surface made of steel: E020; Fabric cover: S46,52,73,74,78,79,80; Acoustic surface made of chipboard: L3.
